Description

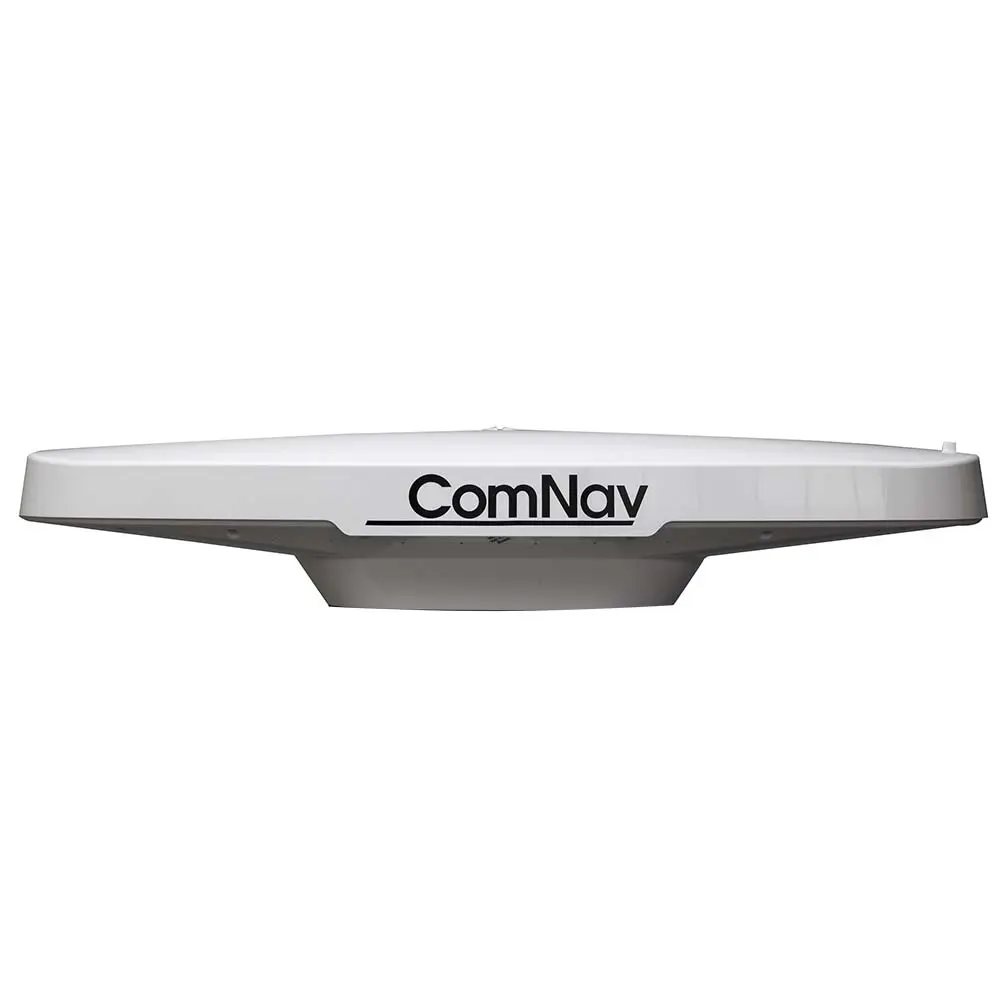

G2 Satellite Compass – NMEA 2000 with 6M Cable

Accurate Heading & Precise Position for Professionals

Features:

• Supports both GPS and GLONASS satellites for complete redundancy

• Heading accuracy < 0.25° rms

• Position accuracy < 0.3m 95% confidence (DGPS)

• An integrated 9 Axis Inertial Measurement Core (IMC technology) provides enhanced roll, tilt and heading stability even during momentary loss of satellite signals

• IMO Compliant G3 color display system (optional)

• Engineered enhancements to exceed sealed IP67 rating

• Extended 2 year warranty

• NMEA 2000® interface

• Type approved as primary heading AND positioning device

• Heave, Pitch, Roll and Rate of Turn as standard output

• Heading updates 1 to 20 Hz

• BAUD Rate selectable: 4800, 9600, 19200, 38400,115200

• Fully compatible with on board NMEA 0183 and NMEA 2000® RADAR, ECDIS, AIS, Cameras, SONAR, PC and Autopilots

• Compact integrated surface mounting (Pole mount optional)

• IMO Compliant, Wheelmark and USCG approved

• Pre-programmed default settings for Heading, Rate of Turn, Course over Ground, Lat/Long position, Time & Date

• 1PPS output standard

• 15 meter serial cable standard (30 meter optional)

• 6 meter NMEA 2000® Cable (Optional)

• CE certified for EMI and RFI immunity

• Worldwide service
