Description

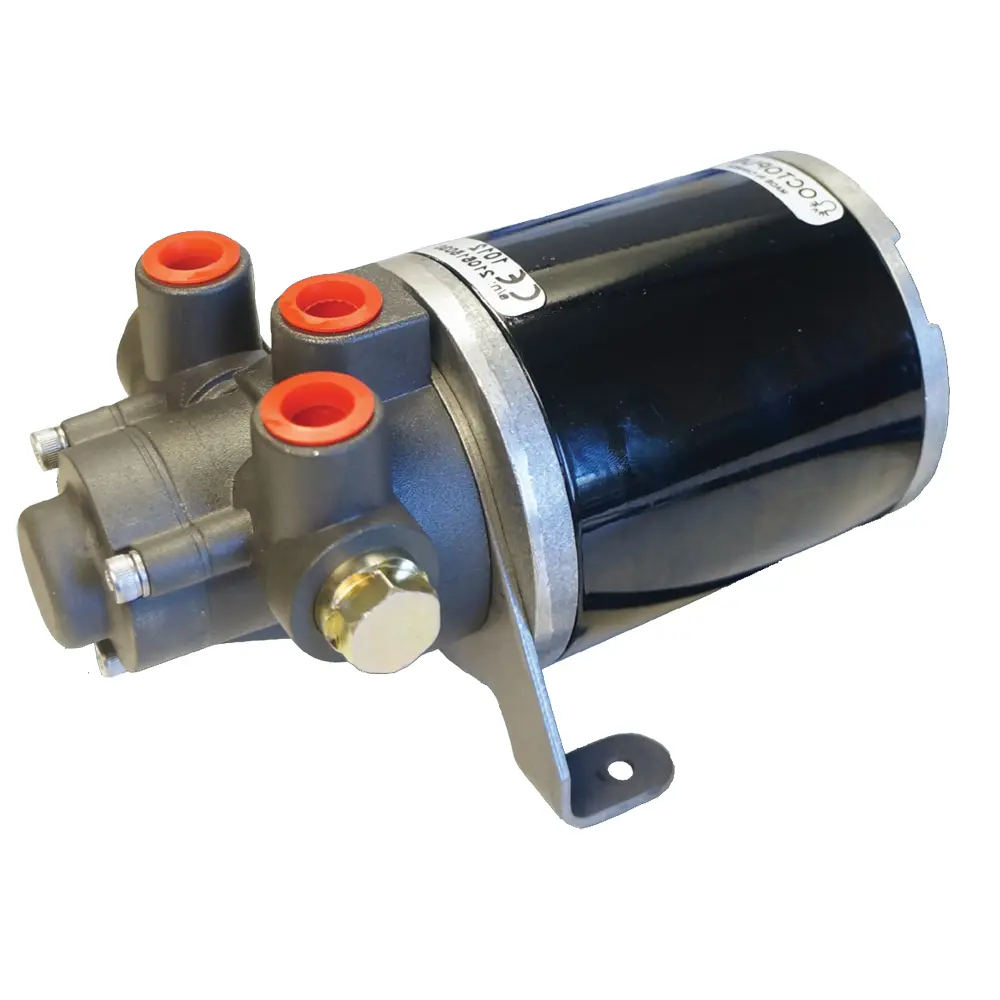

Hydraulic Gear Pump 12V 6-9CI Cylinder

From the design team that brought you the legendary Octopus hydraulic drives, our new gear pump offers industry leading reliability and performance in a smaller, lighter, quieter package.

Features:

• Industry leading efficiency – lower power consumption, particularly under demanding conditions requiring higher flow rates equates to a major advantage over competing units.

• Cost saving – the increased efficiency and performance means the pumps can be used with smaller autopilot course computers than equivalent drive units.

• The smaller footprint of the compact gear pump increases installation flexibility.

• Lower noise and vibration make the gear pump particularly suitable for sailboat installations.

• Suitable for balanced or unbalanced cylinders.

• All models available for both 12v and 24v systems.

Specifications:

• Flow Rate: 600CC/min

• Voltage: 12 Volt

• Cylinder Range: 6-9ci CYLINDER

• Average Current Draw: 3.8A

• Operating Temperature: -15 to +75’C (5 – 167’F)

• Waterproofing: IP55

• Ignition Protection: ISO 8846 & SAEJ1171

• EMC Compliance: EN60945-9-2002
